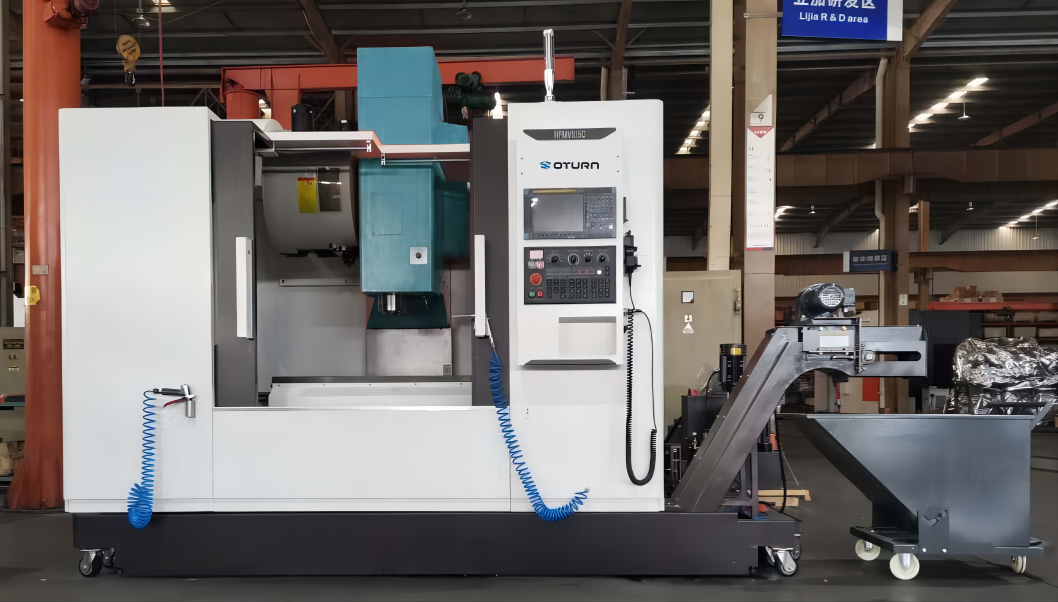

CNC nkqo Machining Centre RFMV Series Kuba Hub Wheel
Uqwalaselo lweMveliso
Iimbonakalo
Ubume obubambeneyo , imbonakalo yobuhle
Uyilo lwekholamu ye-herringbone yespan enkulu inomsebenzi ogqwesileyo wokufunxa
Ukuchaneka okuphezulu kwe-spindle mechanical, ukuhanjiswa okugudileyo kunye nozinzile
Lungiselela ulwakhiwo lwezixhobo ngokuhlalutya okulinganiselweyo
Inkqubo yokususwa kwetshiphu ejikeleza kabini ukunciphisa ixesha lomatshini
I-X/Y/Z i-axis yolwakhiwo lwangaphambili
I-Cannon-barrel spindle assembly, ufakelo oludibeneyo, ukugcinwa lula kunye nokukhawuleza
Ixhotyiswe ngomatshini idiski yohlobo lwemagazini yesixhobo, utshintsho olukhawulezayo lwesixhobo
• Isixhobo somatshini senziwe ikakhulu yibhedi, ikholamu, isilayidi esithe tyaba, ibhokisi yokusonta, itafile yokusebenzela, kunye nemagazini yesixhobo.
• Amalungu etanki yetshiphu yokupholisa asetyenziselwa ukupholisa, ukucoca kunye nokugungxulwa kweetshiphu ngexesha lomatshini.
• Icandelo leyunithi yezindlu zokusonta yinxalenye ejikelezayo yesixhobo somatshini, esenziwe ikakhulu ngumzimba wokuphotha webhokisi yokusonta, idibaniso yokusonta, inkqubo yeemela ezikhululayo kunye nenjini yokusonta.
• Ikholamu ethe nkqo i-Z-axis, equlunqwe ubukhulu becala ngumzimba wokuphosa ikholamu, isikrufu sokuqhuba, isikhokelo sokutyibilika, isigqubuthelo sokhuselo se-Z kunye nekhonkco lamandla le-Z-axis.
• Icandelo lesihlalo sokutyibilika esinqamlezileyo yi-axis esekhohlo nasekunene ethe tyaba yesixhobo, oko kukuthi, i-X-axis, eyona nto iqulunqwe ngumzimba wokuphosa wesihlalo sokutyibilika esinqamlezayo, isikrufu sokuqhuba, isikhokelo sokutyibilika, i-X-axis ekhohlo ikhava yokukhusela, i-X-axis ekunene ikhava yokukhusela kunye ne-X-chainaxi yamandla.
• Amalungu ebhedi asisiseko sesixhobo esipheleleyo kunye neeasi ezingaphambili nezingasemva zesixhobo, oko kukuthi, i-Y-axis, eyona nto yenziwe ngumzimba wokulalisa ibhedi, i-screw rod, i-sliding guide rail, i-Y-axis yangaphambili ikhava yokukhusela kunye ne-Y-axis yokukhusela yangasemva.
• Icandelo lemagazini yesixhobo yindawo yokugcina isixhobo yomatshini, enokunceda umatshini ukuba aqonde isenzo sokutshintsha isixhobo esizenzekelayo. Ubukhulu becala yenziwe ngumzimba ophambili wemagazini yesixhobo, isibiyeli semagazini yesixhobo kunye nenxalenye yohlengahlengiso lwemagazini.
IiNgcaciso zobuGcisa
| Iinkcukacha | RFMVN870 | RFMV105-L | |
| Ukuhamba kwe-axis nganye | I-X-axis (ekhohlo nasekunene) | 850mm | 1050mm |
| I-Y-axis (ngaphambili nasemva) | 720mm | 750mm | |
| I-Z-axis (phezulu nasezantsi) | 600mm | 900mm | |
| Umgama ukusuka kwiziko lokusonta ukuya kwikholamu yokufakwa kwesikhokelo umphezulu | 760mm | 790mm | |
| Umgama ukusuka kwisiphelo sesiphelo sobuso ukuya kwindawo enokusetyenzwa | 150mm～750mm | 420～1020mm | |
| Indawo yokusebenza | Ubungakanani betafile yetafile (L*W) | 1000mmX700 | 1250X 700 |
| ukuthwala umthamo | 800kg | 1000Kg | |
| Igroove emile okwe-T | 7X18mmX100mm | 5X18mmX100mm | |
| Ishaft engundoqo | Isantya se-spindle | 15000rpm(Uqhagamshelo oluthe ngqo) | 8000rpm |
| Umngxuma wetaper weshaft engundoqo | ISO 40 | ISO 40 | |
| Ishafti engundoqo ngaphambili kwishafti (idayamitha) | Φ70mm | ф70mm | |
| Amandla eshaft angundoqo | 8.4kW/12.6kW(S6-40%) | 15kw/18.5kw | |
| Inkqubo yokutya | Isantya sokuhamba ngokukhawuleza | X,Y:36m/mz;Z:30m/min;Z:32m/mz | X:36m/mz;Y:36m/mz;Z:30m/mz |
| Ukusika isantya | 1-15000mm / min | 1-10000mm / min | |
| Servo motor amandla | X/Y/Z-axis:2.9/2.9/3.55kW | - | |
| Servo motor torque | X/Y/Z-axis:22Nm | X-axis:11 N·m , Y/Z-axis:11 N·m | |
| ukuchaneka kokubeka | 0.008mm | 0.008mm | |
| Ukuphindaphinda ukuchaneka kokubeka | 0.005mm | 0.004mm | |
| Inkqubo yokutshintsha isixhobo esizenzekelayo | Uhlobo lwemagazini yesixhobo | Uhlobo lwesandla soomatshini | Uhlobo lwesandla soomatshini |
| Inani leemela | 24 amacephe | 24 amacephe | |
| Ubuninzi besixhobo sobude | 300mm | 300mm | |
| Ubuninzi besixhobo sedayamitha | Φ80mm/Φ150mm | ф80(Φ150 Imela esecaleni engenanto） | |
| Ubunzima besixhobo esiphezulu | 7kg | 8Kg | |
| Umqheba wemela kwaye utsale i-rivet | MAS403 BT40,Rivet P40T-1 | MAS403 BT40,Rivet P40T-1 | |
| Ixesha lokutshintsha isixhobo | 1.55 imizuzwana | 1.8 imizuzwana | |
| Inkqubo yokukhusela yokupholisa | Inkqubo yokupholisa | Umbhobho ongaphambili wesiphelo sento yokusonta | Ukupholisa umlomo wombhobho ophotha ngaphambili |
| Inkqubo yokhuseleko | Unogada omkhulu ovalelweyo ngokupheleleyo | Unogada omkhulu ovalelweyo ngokupheleleyo | |
| I-pneumatic, inkqubo yokuthambisa | Inkqubo ye-pneumatic | P=0.5-0.8MPa | P=0.4-0.8MPa |
|
| Inkqubo yokuthambisa | Ukuthanjiswa kwexesha kunye nobungakanani | Ukuthanjiswa kwexesha kunye nobungakanani |
| Imilinganiselo yangaphandle yesixhobo somatshini (ubude * ububanzi * ubude) | 3200X2500X3000 (mm) | 2950X2950X3050(mm) | |
| Ubunzima besixhobo somatshini | 7000kg | 8000Kg | |
| Inkqubo yolawulo lwamanani | Siemens 828D | FANUC 0I MF | |
Ubume obubambeneyo , imbonakalo yobuhle
Uyilo lwekholamu ye-herringbone yespan enkulu inomsebenzi ogqwesileyo wokufunxa
Ukuchaneka okuphezulu kwe-spindle mechanical, ukuhanjiswa okugudileyo kunye nozinzile
Lungiselela ulwakhiwo lwezixhobo ngokuhlalutya okulinganiselweyo
Inkqubo yokususwa kwetshiphu ejikeleza kabini ukunciphisa ixesha lomatshini
I-X/Y/Z i-axis yolwakhiwo lwangaphambili
I-Cannon-barrel spindle assembly, ufakelo oludibeneyo, ukugcinwa lula kunye nokukhawuleza
Ixhotyiswe ngomatshini idiski yohlobo lwemagazini yesixhobo, utshintsho olukhawulezayo lwesixhobo
• Isixhobo somatshini senziwe ikakhulu yibhedi, ikholamu, isilayidi esithe tyaba, ibhokisi yokusonta, itafile yokusebenzela, kunye nemagazini yesixhobo.
• Amalungu etanki yetshiphu yokupholisa asetyenziselwa ukupholisa, ukucoca kunye nokugungxulwa kweetshiphu ngexesha lomatshini.
• Icandelo leyunithi yezindlu zokusonta yinxalenye ejikelezayo yesixhobo somatshini, esenziwe ikakhulu ngumzimba wokuphotha webhokisi yokusonta, idibaniso yokusonta, inkqubo yeemela ezikhululayo kunye nenjini yokusonta.
• Ikholamu ethe nkqo i-Z-axis, equlunqwe ubukhulu becala ngumzimba wokuphosa ikholamu, isikrufu sokuqhuba, isikhokelo sokutyibilika, isigqubuthelo sokhuselo se-Z kunye nekhonkco lamandla le-Z-axis.
• Icandelo lesihlalo sokutyibilika esinqamlezileyo yi-axis esekhohlo nasekunene ethe tyaba yesixhobo, oko kukuthi, i-X-axis, eyona nto iqulunqwe ngumzimba wokuphosa wesihlalo sokutyibilika esinqamlezayo, isikrufu sokuqhuba, isikhokelo sokutyibilika, i-X-axis ekhohlo ikhava yokukhusela, i-X-axis ekunene ikhava yokukhusela kunye ne-X-chainaxi yamandla.
• Amalungu ebhedi asisiseko sesixhobo esipheleleyo kunye neeasi ezingaphambili nezingasemva zesixhobo, oko kukuthi, i-Y-axis, eyona nto yenziwe ngumzimba wokulalisa ibhedi, i-screw rod, i-sliding guide rail, i-Y-axis yangaphambili ikhava yokukhusela kunye ne-Y-axis yokukhusela yangasemva.
• Icandelo lemagazini yesixhobo yindawo yokugcina isixhobo yomatshini, enokunceda umatshini ukuba aqonde isenzo sokutshintsha isixhobo esizenzekelayo. Ubukhulu becala yenziwe ngumzimba ophambili wemagazini yesixhobo, isibiyeli semagazini yesixhobo kunye nenxalenye yohlengahlengiso lwemagazini.
| Iinkcukacha | RFMVN870 | RFMV105-L | |
| Ukuhamba kwe-axis nganye | I-X-axis (ekhohlo nasekunene) | 850mm | 1050mm |
| I-Y-axis (ngaphambili nasemva) | 720mm | 750mm | |
| I-Z-axis (phezulu nasezantsi) | 600mm | 900mm | |
| Umgama ukusuka kwiziko lokusonta ukuya kwikholamu yokufakwa kwesikhokelo umphezulu | 760mm | 790mm | |
| Umgama ukusuka kwisiphelo sesiphelo sobuso ukuya kwindawo enokusetyenzwa | 150mm ~ 750mm | 420 ~ 1020mm | |
| Indawo yokusebenza | Ubungakanani betafile yetafile (L*W) | 1000mmX700 | 1250X 700 |
| ukuthwala umthamo | 800kg | 1000Kg | |
| Igroove emile okwe-T | 7X18mmX100mm | 5X18mmX100mm | |
| Ishaft engundoqo | Isantya se-spindle | 15000rpm(Uqhagamshelo oluthe ngqo) | 8000rpm |
| Umngxuma wetaper weshaft engundoqo | ISO 40 | ISO 40 | |
| Ishafti engundoqo ngaphambili kwishafti (idayamitha) | Φ70mm | ф70mm | |
| Amandla eshaft angundoqo | 8.4kW/12.6kW(S6-40%) | 15kw/18.5kw | |
| Inkqubo yokutya | Isantya sokuhamba ngokukhawuleza | X, Y:36m/min;Z:30m/min; Z:32m/min | X:36m/m;Y:36m/m; Z:30m/m |
| Ukusika isantya | 1-15000mm / min | 1-10000mm / min | |
| Servo motor amandla | X/Y/Z-axis:2.9/2.9/3.55kW | - | |
| Servo motor torque | X/Y/Z-axis:22Nm | X-axis:11 N·m , Y/Z-axis:11 N·m | |
| ukuchaneka kokubeka | 0.008mm | 0.008mm | |
| Ukuphindaphinda ukuchaneka kokubeka | 0.005mm | 0.004mm | |
| Inkqubo yokutshintsha isixhobo esizenzekelayo | Uhlobo lwemagazini yesixhobo | Uhlobo lwesandla soomatshini | Uhlobo lwesandla soomatshini |
| Inani leemela | 24 amacephe | 24 amacephe | |
| Ubuninzi besixhobo sobude | 300mm | 300mm | |
| Ubuninzi besixhobo sedayamitha | Φ80mm/Φ150mm | ф80 (Φ150 esecaleni kwemela engenanto) | |
| Ubunzima besixhobo esiphezulu | 7kg | 8Kg | |
| Umqheba wemela kwaye utsale i-rivet | MAS403 BT40,Rivet P40T-1 | MAS403 BT40,Rivet P40T-1 | |
| Ixesha lokutshintsha isixhobo | 1.55 imizuzwana | 1.8 imizuzwana | |
| Inkqubo yokukhusela yokupholisa | Inkqubo yokupholisa | Umbhobho ongaphambili wesiphelo sento yokusonta | Ukupholisa umlomo wombhobho ophotha ngaphambili |
| Inkqubo yokhuseleko | Unogada omkhulu ovalelweyo ngokupheleleyo | Unogada omkhulu ovalelweyo ngokupheleleyo | |
| I-pneumatic, inkqubo yokuthambisa | Inkqubo ye-pneumatic | P=0.5-0.8MPa | P=0.4-0.8MPa |
|
| Inkqubo yokuthambisa | Ukuthanjiswa kwexesha kunye nobungakanani | Ukuthanjiswa kwexesha kunye nobungakanani |
| Imilinganiselo yangaphandle yesixhobo somatshini (ubude * ububanzi * ubude) | 3200X2500X3000 (mm) | 2950X2950X3050(mm) | |
| Ubunzima besixhobo somatshini | 7000kg | 8000Kg | |
| Inkqubo yolawulo lwamanani | Siemens 828D | FANUC 0I MF | |
